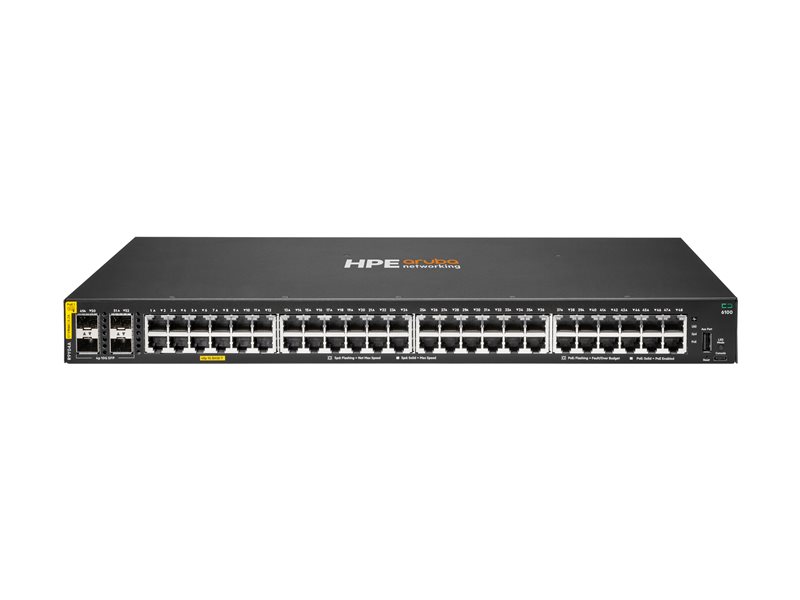

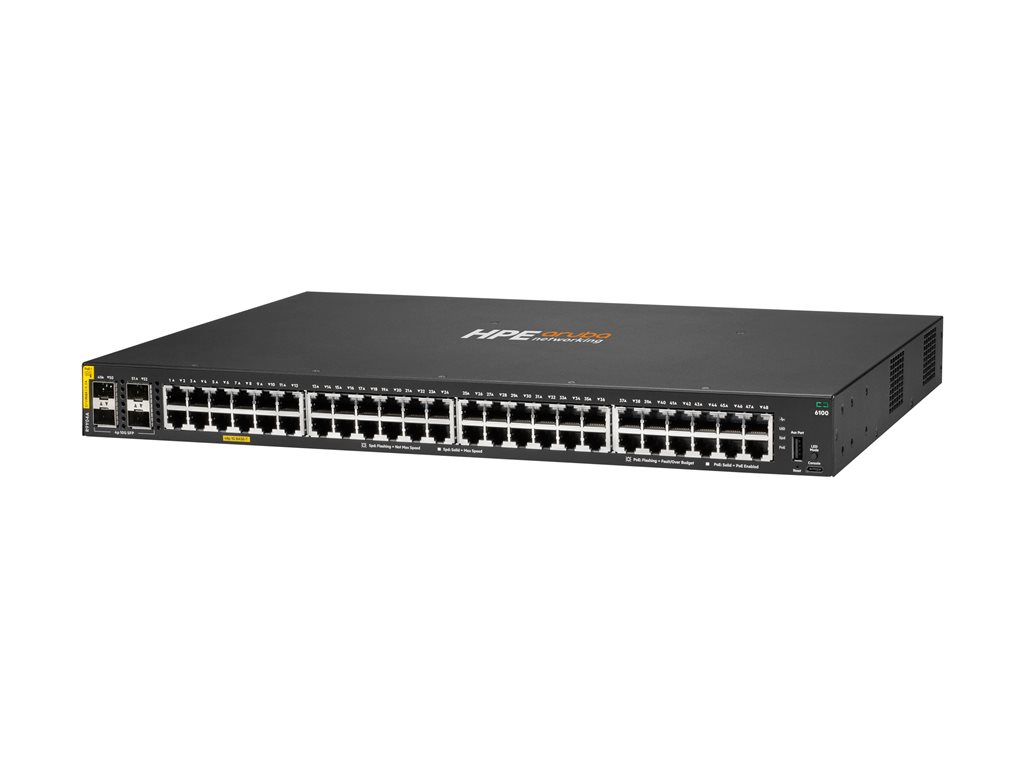

Hewlett Packard Enterprise - HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - side to side airflow - rack-mountable, wall-mountable - PoE+ (740 W) - CTO
Price: $7,110.14
MSRP: $10,182.00
Discount off MSRP: 30.17%
Out of StockProduct Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs |
| Capacity | Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 host table capacity: 1024 ¦ IPv6 host table capacity: 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ Packet buffer size: 12.38 MB |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3 |
| Features | LLDP, PoE Class 4, UTM, UDLD, CoS, ToS, Address Resolution Protocol, layer 2 switching, RPVST+, RSTP support, MSTP support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
| Power | AC 100-127/200-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 12.8 in x 1.7 in |
| Weight | 10.36 lbs |
| System Requirements | AOS-CX |
| Localization | English / United States |
| Pricing Type | CTO |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable, wall-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs |
| Capacity | Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 host table capacity: 1024 ¦ IPv6 host table capacity: 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ Packet buffer size: 12.38 MB |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3 |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | LLDP, PoE Class 4, UTM, UDLD, CoS, ToS, Address Resolution Protocol, layer 2 switching, RPVST+, RSTP support, MSTP support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
| Processor | 1 x ARM CortexTM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 16 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 ¦ 4 x Gigabit / 10Gbit LAN SFP+ uplink ¦ 1 x USB-C console ¦ 1 x USB Type A host |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEC 62368-1: 2014, EN 62368-1: 2018, IEC 62368-1:2018, UL 62368-1: 2014 2nd Ed., VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015 + A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, EN 60825-1:2014, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3 |
| Pricing Type | CTO |
| Localization | English / United States |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 950 Watt |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Power Consumption Operational | 49.7 Watt |
| Power Consumption Stand by | 37.5 Watt |
| Software / System Requirements | |
| OS Required | AOS-CX |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 12.8 in |
| Height | 1.7 in |
| Weight | 10.36 lbs |
