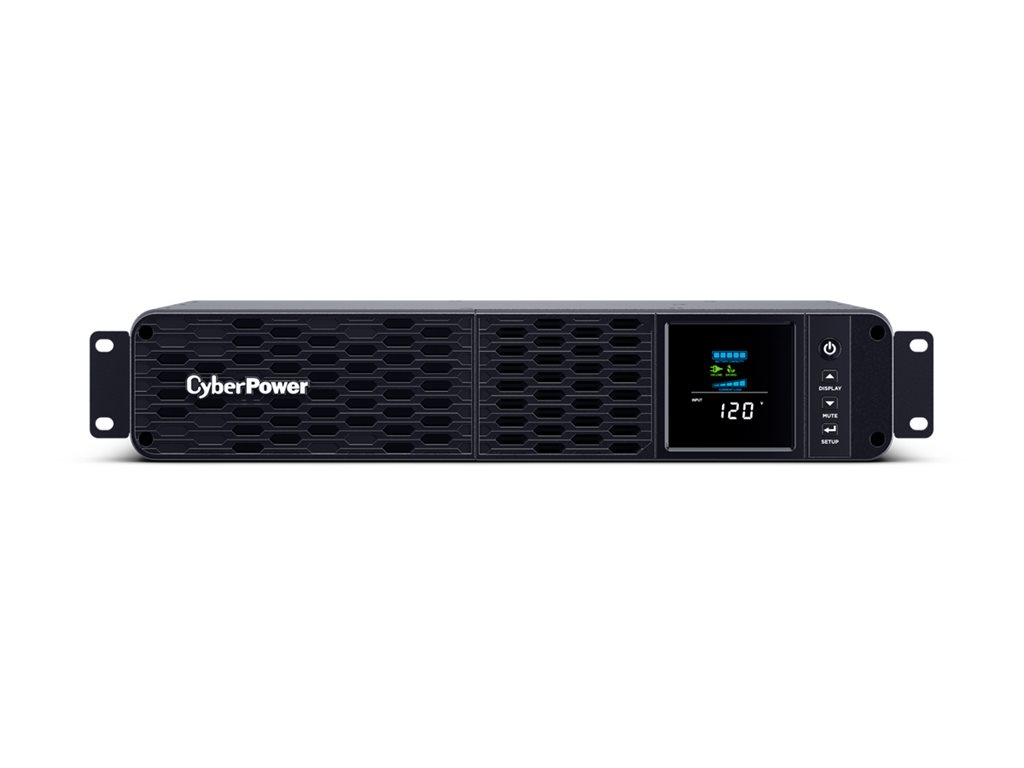

CyberPower - CyberPower PFC Sinewave Series CP2000PFCRM2U
UPS (rack-mountable) - AC 120 V - 1200 Watt - 2000 VA - 9 Ah - USB, serial - output connectors: 8 - active PFC - 2U - black
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | CyberPower PFC Sinewave Series CP2000PFCRM2U - UPS - 1200 watt - 2000 VA |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable |
| Rack Size | 2U |
| Weight | 28.68 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 1200 watt / 2000 VA |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 8 x power NEMA 5-20P (UPS and surge) - 120 V |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 2 |
| Run Time (Up To) | 2.2 min at full load |
| Networking | USB, serial |
| Color | Black |
| Dimensions (WxDxH) | 17.1 in x 10.8 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - Type B ¦ 1 x serial - 9 pin D-Sub (DB-9) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | AC input cable - integrated - 6 ft ¦ USB cable |
| Equipment Protection Value | 500000 US Dollars |
| Features | Metal and plastic housing, user-replaceable batteries, Automatic Voltage Regulation (AVR), GreenPower UPS Bypass Technology, LED indicators, fault alarm, low battery alarm, overload alarm, overload protection, internal current limiting, built-in EMI filter, audible alarm, LCD display, right-angle connector |
| Compliant Standards | RoHS, UL 1778, FCC DOC Class B |
| Networking | |
| Remote Management Interface | USB, serial |
| Software / System Requirements | |
| Software Included | PowerPanel Business |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Quantity | 2 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 2.2 min at full load ¦ 9 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 4 ms |
| Features | Sealed, hot-swappable |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 144 V |
| Frequency Required | 57 - 63 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Power Output Connectors Details | 8 x power NEMA 5-20P (UPS and surge) - 120 V |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 1200 watt / 2000 VA |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1500 joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.6 |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 10.8 in |
| Height | 3.4 in |
| Weight | 28.68 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.6 in |
| Shipping Depth | 14.7 in |
| Shipping Height | 7.5 in |
| Shipping Weight | 31.39 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
