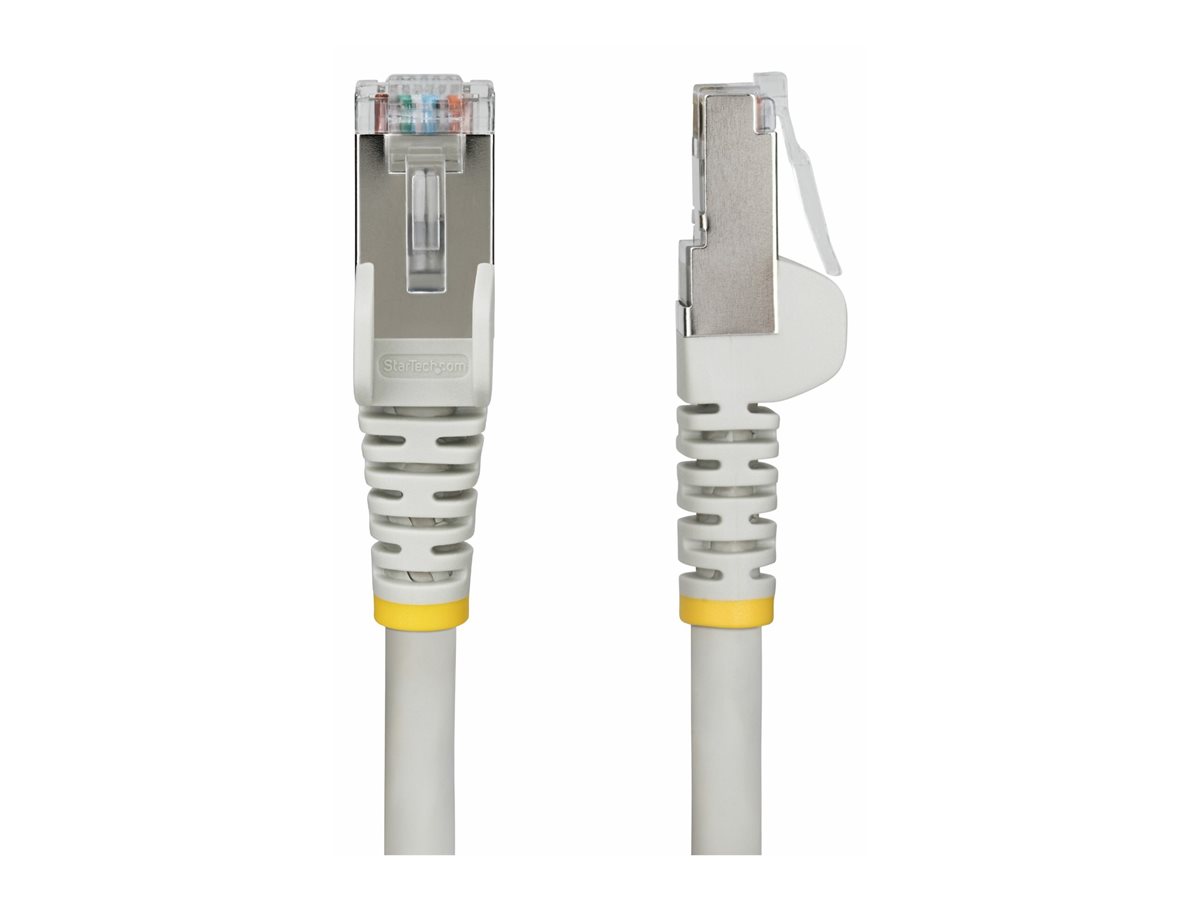

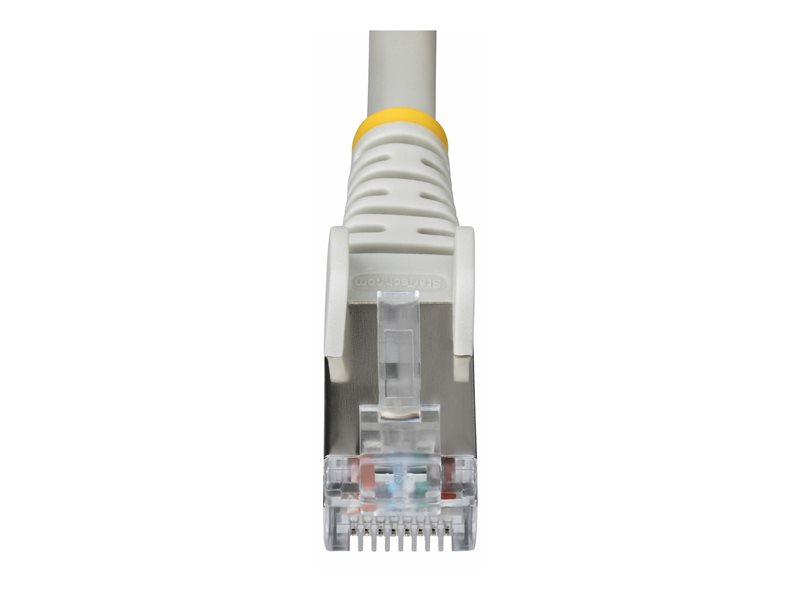

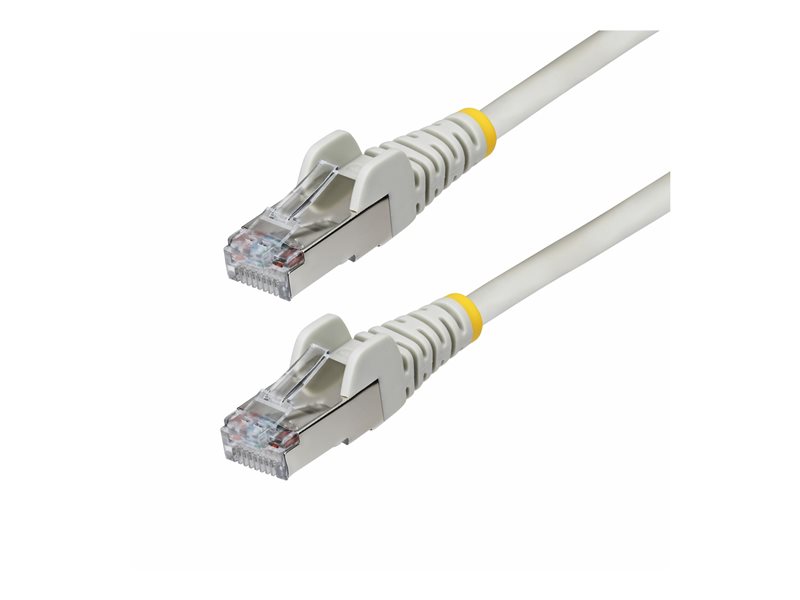

StarTech - Startech 6ft Gray CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH
Patch cable - RJ-45 (M) to RJ-45 (M) - 1.8 m - 0.2 in - S/FTP - CAT 5/5e/6/6a - IEEE 802.3bt - halogen-free, passive, snagless, stranded - gray
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Startech 6ft Gray CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH - patch cable - 1.8 m - gray |
| Type | Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminum mylar foil with braid |
| Wires per Cable | 8 wires |
| Features | Halogen-free, passive cable, snagless, stranded, flame retardant, strain relief, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, EMI protection, 100W PoE++ support |
| Cable Length | 1.8 m |
| Diameter | 0.2 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Gray |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminum mylar foil with braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Halogen-free, passive cable, snagless, stranded, flame retardant, strain relief, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, EMI protection, 100W PoE++ support |
| Cable Length | 1.8 m |
| Diameter | 0.2 in |
| Color | Gray |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, ETL, WEEE, ANSI/TIA-568.2-D, IEEE 802.3bt Type 4, TIA/EIA T568B - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.7 in |
| Shipping Depth | 7.5 in |
| Shipping Height | 0.6 in |
| Shipping Weight | 2.75 oz |
