Canon - Canon imagePROGRAF TX-3200
36" large-format printer - color - ink-jet - - 2400 x 1200 dpi up to 3.3 ppm (color) - USB 2.0, Gigabit LAN, Wi-Fi(n), USB host
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Canon imagePROGRAF TX-3200 - large-format printer - color - ink-jet |
| Printer Type | 36" large-format printer - ink-jet - color |
| Weight | 227.07 lbs |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Ink Palette Supported (Colors) | 5-ink - cyan, magenta, yellow, black, matte black |
| Max Media Size | Roll (36 in) |
| Min Media Size (Custom) | 6 in |
| Max Media Size (Custom) | 36.1 in |
| Print Speed | Up to 3.3 ppm - fast economy - Roll A1 (24 in x 300 ft) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host |
| AirPrint Enabled | Yes |
| RAM Installed (Max) | 2 GB |
| Hard Drive | 500 GB |
| Language Simulation | HP GL/2, HP RTL, PDF, JPEG, CALS G4 |
| Media Type | Plain paper |
| Networking | Print server |
| Printer Features | Borderless printing, Hard Disk Drive Encryption |
| Power | AC 100-240 V |
| System Requirements | Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2016 (64-bit), Microsoft Windows Server 2019 (64-bit), Microsoft Windows Server 2022, Apple macOS 11.7.10 - 14.x |
| Environmental Standards | EPEAT Gold |
| Dimensions (WxDxH) | 54.7 in x 38.7 in x 46 in |
| General | |
| Printer Type | 36" large-format printer - ink-jet - color |
| Expansion / Connectivity | |
| Connections | 1 x USB host - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Included Accessories | Stand, 3" core adapter, roll holder |
| Consumables Included | 1 x ink tank (pigmented matte black) - 330 ml ¦ 1 x ink tank (pigmented black) - 160 ml ¦ 1 x ink tank (pigmented cyan) - 160 ml ¦ 1 x ink tank (pigmented magenta) - 160 ml ¦ 1 x ink tank (pigmented yellow) - 160 ml ¦ 1 x printhead - Canon PF-06 |
| Compliant Standards | cTUVus, FCC Part 15 B, FCC Part 15 C |
| Printer | |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Ink Palette Supported (Colors) | 5-ink - cyan, magenta, yellow, black, matte black |
| Nozzle Configuration | 5120 nozzles (matte black), 4 x 2560 nozzles (cyan, magenta, yellow, black) |
| Minimum Ink Droplet Size | 5 pl |

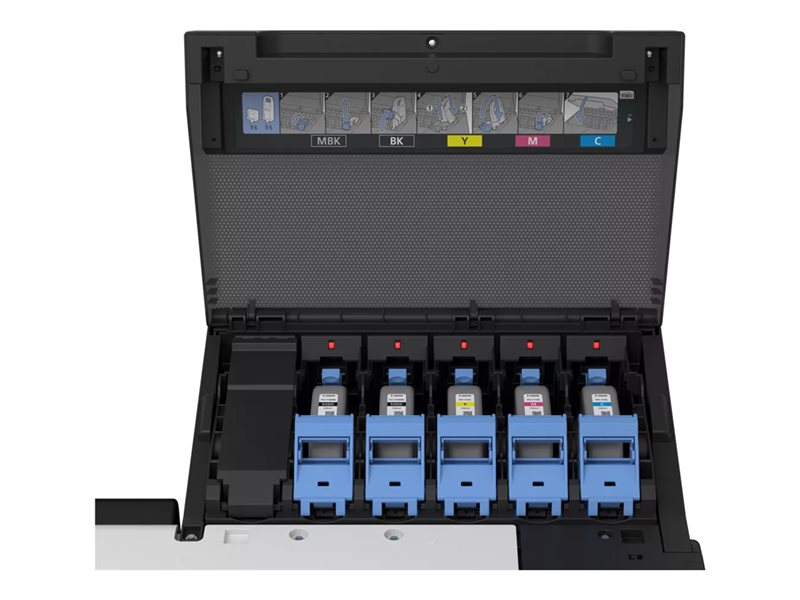

| Ink Cartridge Configuration | 5 individual ink tanks |
| Ink Type | Canon LUCIA TD pigment ink |
| Print Speed | Up to 3.3 ppm - fast economy - Roll A1 (24 in x 300 ft) |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), USB host |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Language Simulation | HP GL/2, HP RTL, PDF, JPEG, CALS G4 |
| Printer Features | Borderless printing, Hard Disk Drive Encryption |
| RAM | |
| RAM Installed (Max) | 2 GB |
| Storage | |
| Hard Drive | 500 GB |
| Media Handling | |
| Media Type | Plain paper |
| Max Media Size | Roll (36 in) |
| Min Media Size (Custom) | 6 in |
| Max Media Size (Custom) | 36.1 in |
| Media Sizes | Roll A2 (16.5 in), Roll (10 in), Roll (16 in), Roll (17 in), Roll (12 in), Roll (8 in), Roll (15 in), Roll (11.8 in), Roll (6 in), Roll (36 in), Roll (30.0 in), Roll (13 in), Roll (14 in), Roll (33.1 in), Roll A1 (24 in), Roll (24 in), Roll JIS B2 (20.3 in), Roll (28.66 in), Roll A3 (11.69 in), Roll JIS B4 (10.12 in), Roll (20 in), Roll (19.69 in), Roll (23.62 in), Roll (31.5 in), Roll (22 in), Roll (17.99 in), Roll (86.4 cm) |
| Max Printing Length | 59 ft |
| Media Thickness Range | 0.0028 in - 0.0315 in |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 115 Watt |
| Power Consumption Stand by | 2 Watt |
| Power Consumption Sleep | 0.3 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, PosterArtist Lite |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2016 (64-bit), Microsoft Windows Server 2019 (64-bit), Microsoft Windows Server 2022, Apple macOS 11.7.10 - 14.x |
| Environmental Parameters | |
| Min Operating Temperature | 59 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Sound Emission (Idle) | 35 dBA |
| Sound Emission (Operating) | 51 dBA |
| Dimensions & Weight | |
| Width | 54.7 in |
| Depth | 38.7 in |
| Height | 46 in |
| Weight | 227.07 lbs |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 64 in |
| Depth (Shipping) | 35.6 in |
| Height (Shipping) | 40.7 in |
| Weight (Shipping) | 346.12 lbs |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR | Yes |
