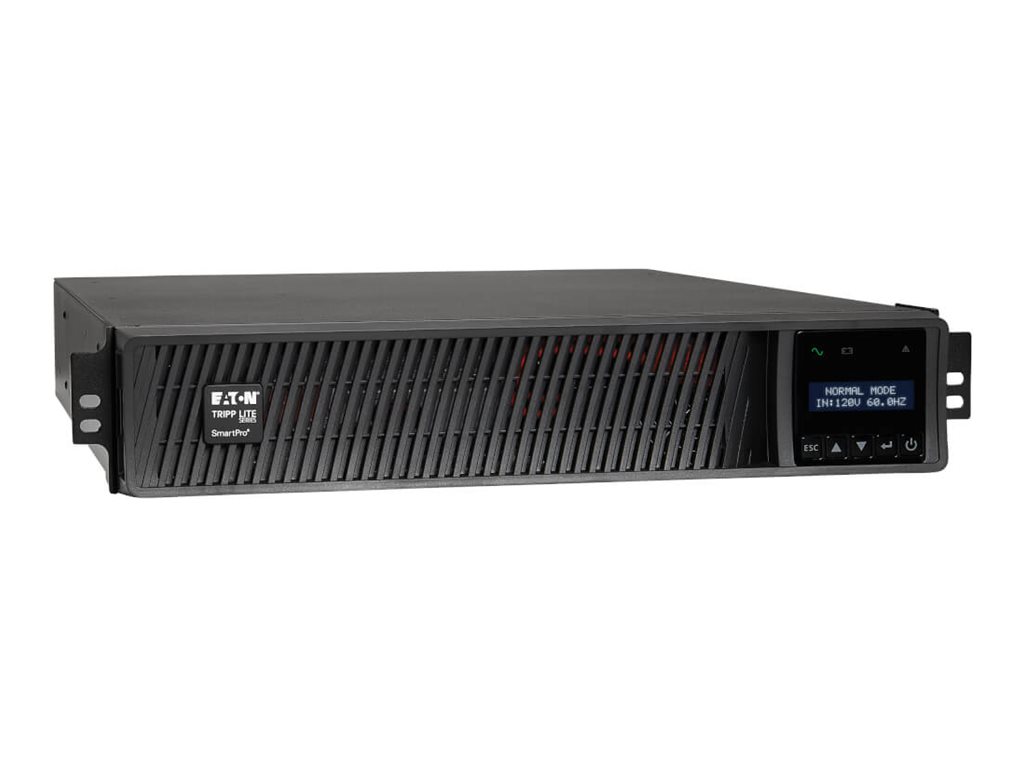

Tripp Lite - Eaton Tripp Lite Series 3000VA 3000W 120V Line-Interactive Sine Wave UPS
7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower, TAA - UPS - AC 120 V - 3000 Watt - 3000 VA - RS-232, USB - output connectors: 7 - 2U - 19" - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower, TAA - UPS - 3000 Watt - 3000 VA - TAA Compliant |
| Device Type | UPS - external |
| Rack Size | 19" - 2U |
| Weight | 74.49 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V + 15% / - 13% |
| Power Capacity | 3000 Watt / 3000 VA |
| Input Connectors | 1 x power NEMA L5-30P |
| Output connectors | 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R |
| Battery | Expandable |
| Run Time (Up To) | 3 min at full load |
| Networking | USB, RS-232 |
| Remote Management Protocol | SNMP |
| Included Accessories | Tower support stands |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.2 in x 23.7 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty with product registration |
| Designed For | P/N: PDUMH30NET, PDUMNH30, PDUMV30 |
| General | |
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) ¦ 1 x RPO/ROO ¦ 1 x battery detection - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years with product registration |
| Miscellaneous | |
| Included Accessories | Tower support stands |
| Cables Included | Power cable - integrated - 10 ft ¦ USB cable - external ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Metal housing, black-out protection, brown-out protection, Automatic Voltage Regulation (AVR), pure sinewave output, controllable load banks, audible alarm, LED indicators, LCD display, cooling fan, cold-start function, energy saving green topology, noise filtering, overvoltage protection, undervoltage protection, hot-swappable batteries |
| Compliant Standards | CSA, ICES, NOM, UL 1778, FCC Part 15 Class B, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, RS-232 |
| Remote Management Protocol | SNMP |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 95% RH (non-condensing) |
| Sound Emission | 50 dBA |
| Battery | |
| Type | Expandable |
| Voltage Provided | DC 72 V |
| Run Time (Up To) | 3 min at full load ¦ 9 min at half load |
| Recharge Time | 5 hours |
| Transfer Time | 4 ms |
| Features | Valve-regulated |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R |
| Output Voltage | AC 120 V + 15% / - 13% - 50/60 Hz |
| Power Capacity | 3000 Watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 380 Joules |
| Efficiency | 96% at 100% Load |
| Power Factor (PF) | 1.0 |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 23.7 in |
| Height | 3.4 in |
| Weight | 74.49 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.8 in |
| Shipping Depth | 30.9 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 87.7 lbs |
| Compatibility Information | |
| Designed For | P/N: PDUMH30NET, PDUMNH30, PDUMV30 |
| Sustainability Information | |
| ENERGY STAR | Yes |
