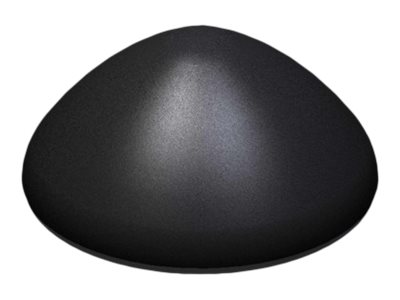

Panorama Antennas - Panorama Antennas LP[G]-7-38[-24-58]
Antenna - IoT, cellular, navigation, Wi-Fi - omni-directional - panel mountable
Panorama Antennas
LG-7-38-24-58-1SP
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Panorama Antennas LP[G]-7-38[-24-58] - antenna |
| Device Type | Antenna |
| Intended For | IoT, cellular, navigation, Wi-Fi |
| Antenna Placing / Mounting | Panel mountable |
| Dimensions (WxDxH) | 4.6 in x 4.6 in x 1.9 in |
| Color | Black |
| Compatibility | M2M, LTE, 4G, 5G |
| Frequency Range | 698 - 960 MHz, 1710 - 3800 MHz, 2400 - 2485 MHz, 4900 - 6000 MHz, 1562 - 1612 MHz |
| Directivity | Omni-directional |
| Features | IP69K, IK10, ground plane independent, flame retardant, VSWR < 2.5:1 |
| General | |
| Product Type | Antenna |
| Intended For | IoT, cellular, navigation, Wi-Fi |
| Antenna Placing / Mounting | Panel mountable |
| Width | 4.6 in |
| Depth | 4.6 in |
| Height | 1.9 in |
| Color | Black |
| Product Material | LEXAN EXL9330 |
| Miscellaneous | |
| Cables Included | Antenna cable - 3.3 ft ¦ GPS cable - 3.3 ft ¦ Wi-Fi cable - 3.3 ft |
| Antenna | |
| Compatibility | M2M, LTE, 4G, 5G |
| Frequency Range | 698 - 960 MHz, 1710 - 3800 MHz, 2400 - 2485 MHz, 4900 - 6000 MHz, 1562 - 1612 MHz |
| Impedance | 50 Ohm |
| Max Power | 20 Watt |
| Directivity | Omni-directional |
| Features | IP69K, IK10, ground plane independent, flame retardant, VSWR < 2.5:1 |
| Connector Provided | |
| Type | Antenna - SMA (male) ¦ GPS antenna - SMA (male) ¦ Wi-Fi antenna - SMA Rev Pol |
