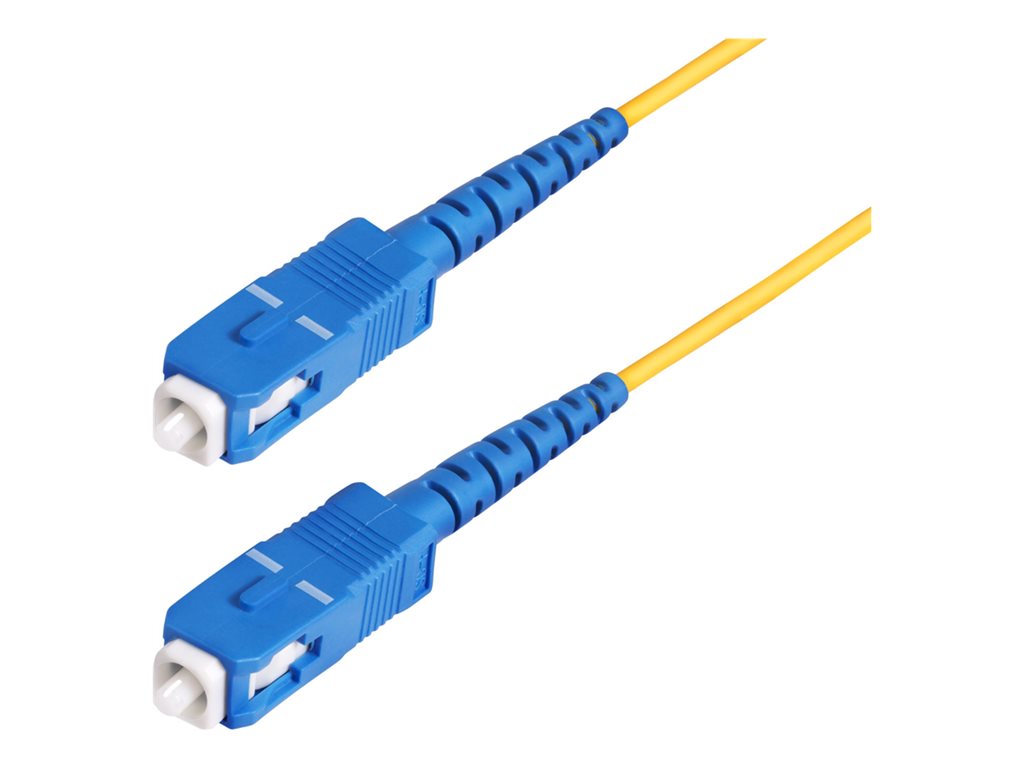

StarTech - Startech 100m (328ft) SC to SC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss, LSZH Fiber Patch Cord
Patch cable - SC/UPC single-mode (M) to SC/UPC single-mode (M) - 100 m - 100 m - 0.1 in - fiber optic - simplex - 9 / 125 micron - OS1/OS2 - halogen-free, passive, bi-directional - yellow
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Startech 100m (328ft) SC to SC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss, LSZH Fiber Patch Cord - patch cable - 100 m - 100 m - yellow |
| Type | Patch cable - OS1/OS2 |
| Technology | Simplex fiber optic |
| Type of Fiber Optics | Singlemode |
| Features | Halogen-free, passive adapter, bi-directional, ceramic ferrule, bend insensitive, low insertion loss, bending radius 10mm, aramid fiber reinforced, up to 100 Gbps, 0.3 dB insertion loss, 55 dB return loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support |
| Cable Length | 100 m |
| Length | 100 m |
| Diameter | 0.1 in |
| Core / Cladding Diameter | 9 / 125 micron |
| Connector | SC/UPC single-mode - male |
| Connector (Second End) | SC/UPC single-mode - male |
| Color | Yellow |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - OS1/OS2 |
| Technology | Simplex fiber optic |
| Type of Fiber Optics | Singlemode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Core / Cladding Diameter | 9 / 125 micron |
| Features | Halogen-free, passive adapter, bi-directional, ceramic ferrule, bend insensitive, low insertion loss, bending radius 10mm, aramid fiber reinforced, up to 100 Gbps, 0.3 dB insertion loss, 55 dB return loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support |
| Cable Length | 100 m |
| Length | 100 m |
| Diameter | 0.1 in |
| Color | Yellow |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, EMI |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | SC/UPC single-mode - male |
| Connector (Second End) | SC/UPC single-mode - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11 in |
| Shipping Depth | 11 in |
| Shipping Height | 0.7 in |
| Shipping Weight | 12.56 oz |
