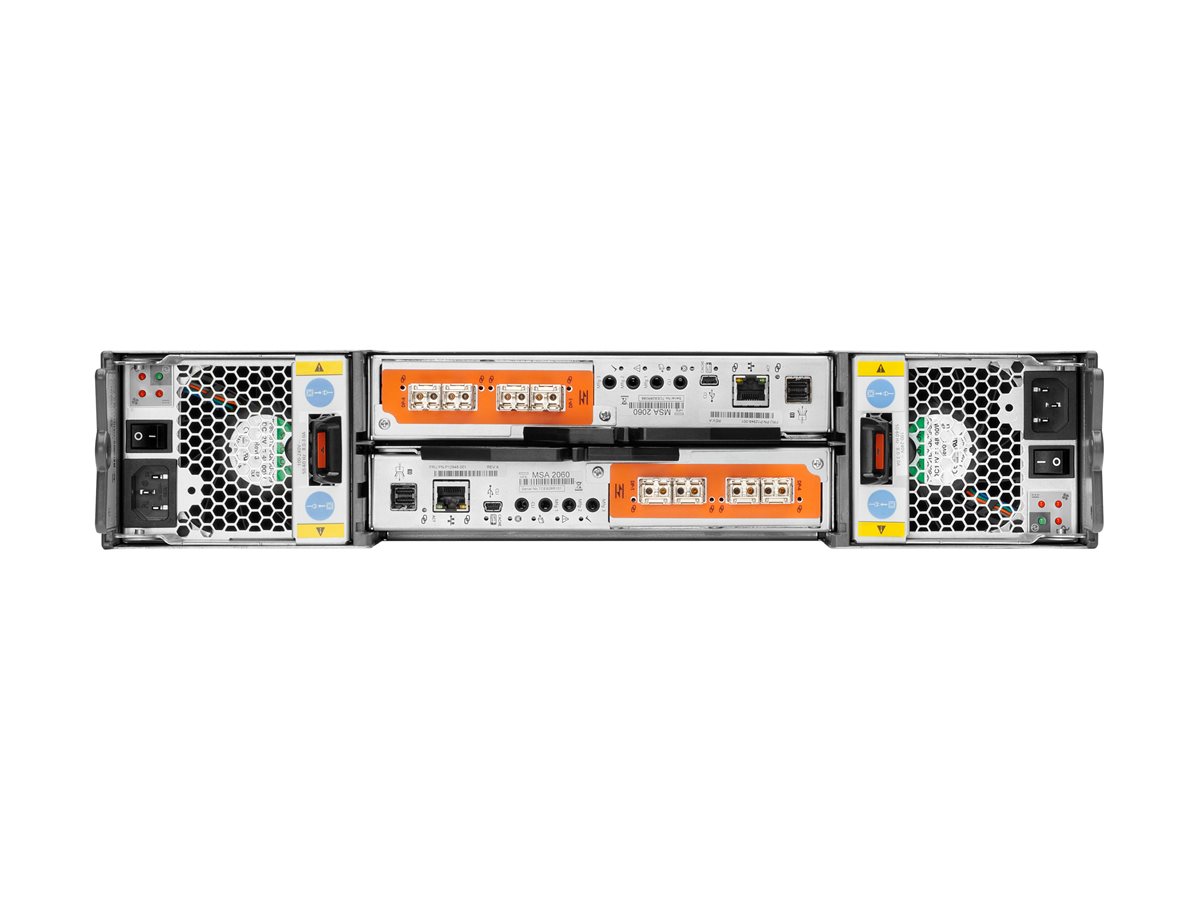

Hewlett Packard Enterprise - HPE Modular Smart Array 2060 16Gb Fibre Channel SFF Flash Bundle
6th Generation - solid state drive array - 46 TB - 24 bays (SAS-3) - SSD 3.84 TB x 12 - 16Gb Fibre Channel (external) - rack-mountable - 2U
Hewlett Packard Enterprise
S2E41B
N/A
0190017695617
N/A
New
Price: $21,815.28
MSRP: $24,020.00
Discount off MSRP: 9.18%
Out of StockProduct Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Modular Smart Array 2060 16Gb Fibre Channel SFF Flash Bundle - 6th Generation - SSD array |
| Device Type | Solid state drive array |
| Enclosure Type | Rack-mountable - 2U |
| Total Array Capacity | 46 TB |
| Max Supported Capacity | 184.32 TB |
| Interface | 16Gb Fibre Channel |
| Maximum LUNs | 512 |
| Installed Devices / Modules Qty | 12 (installed) / 24 (max) |
| Supported Drives | SAS-3 |
| Storage Controller | RAID (SAS 12Gb/s) - RAID 0, 1, 5, 6, 10 |
| Storage Controller Quantity | 2 |
| Hard Drive | 12 x 3.84 TB SSD SAS 12Gb/s Read Intensive |
| OS Required | Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, VMware vSphere 6.7 (ESXi), Red Hat Linux 8.0, SUSE Linux Enterprise Server 15 |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 20 in x 3.5 in |
| Weight | 11.02 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Solid state drive array |
| Enclosure Type | Rack-mountable - 2U |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 12 (free) - 2.5" SFF |
| Interfaces | 8 x SAS 12Gb/s ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Features | SMTP support, SNMP support |
| Included Accessories | Rack mounting kit |
| Processor | |
| CPU | No CPU |
| Storage | |
| Total Array Capacity | 46 TB |
| Max Supported Capacity | 184.32 TB |
| HDD Array External Interface | 16Gb Fibre Channel |
| Maximum LUNs | 512 |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 764 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Sound Emission | 74 dBA |
| Storage Controller | |
| Type | RAID (16Gb Fibre Channel) |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| Cache / Buffer Size (Max) | 24 GB |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, VMware vSphere 6.7 (ESXi), Red Hat Linux 8.0, SUSE Linux Enterprise Server 15 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | SSD |
| Capacity | 12 x 3.84 TB |
| Interface Type | SAS 12Gb/s |
| Features | Read Intensive |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 20 in |
| Height | 3.5 in |
| Weight | 11.02 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Chassis | |
| Installed Devices / Modules Qty | 12 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
