MAXHUB - MAXHUB XCore Kit
For Microsoft Teams Rooms - video conferencing kit (mini-PC XC13T, touch control panel TCP20T) - Certified for Microsoft Teams Rooms
MAXHUB
XCORE KIT
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | MAXHUB XCore Kit - for Microsoft Teams Rooms - video conferencing kit |
| Device Type | Video conferencing kit |

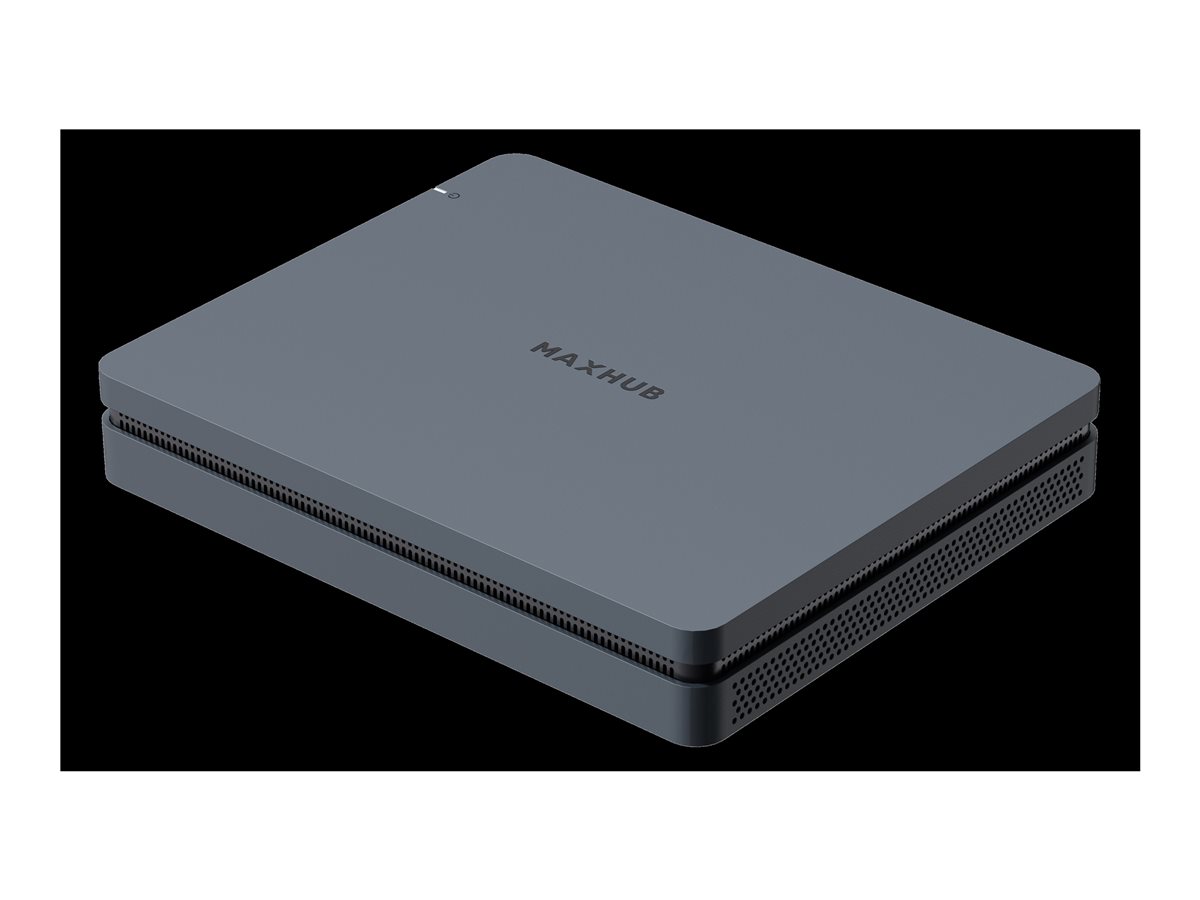

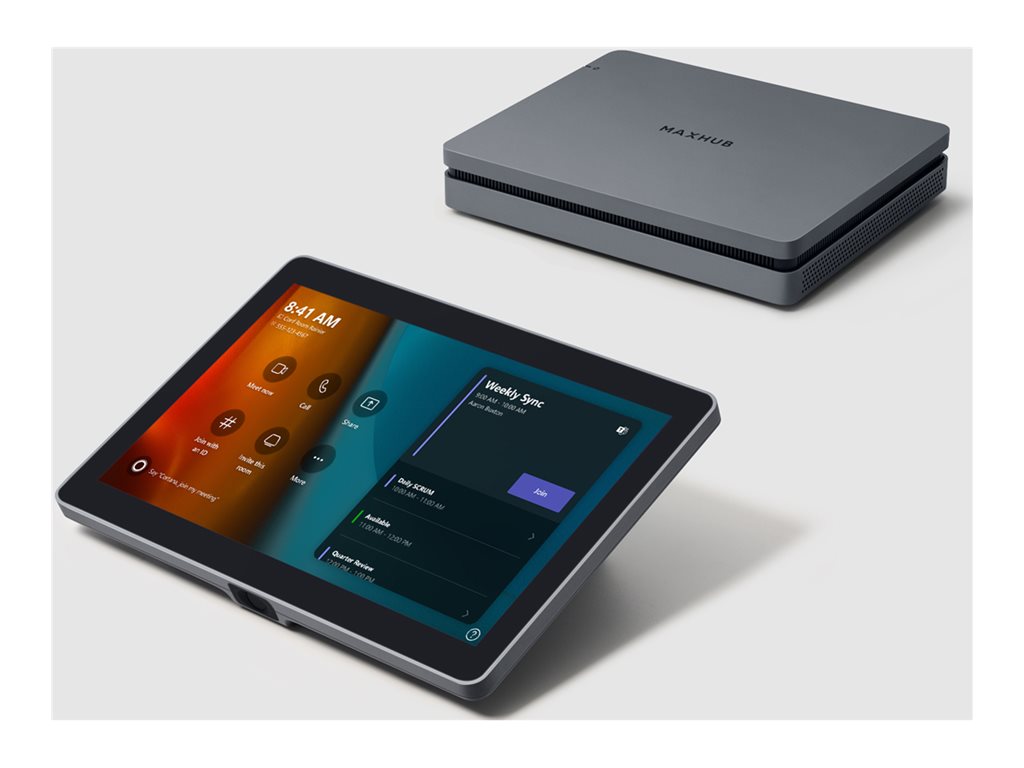

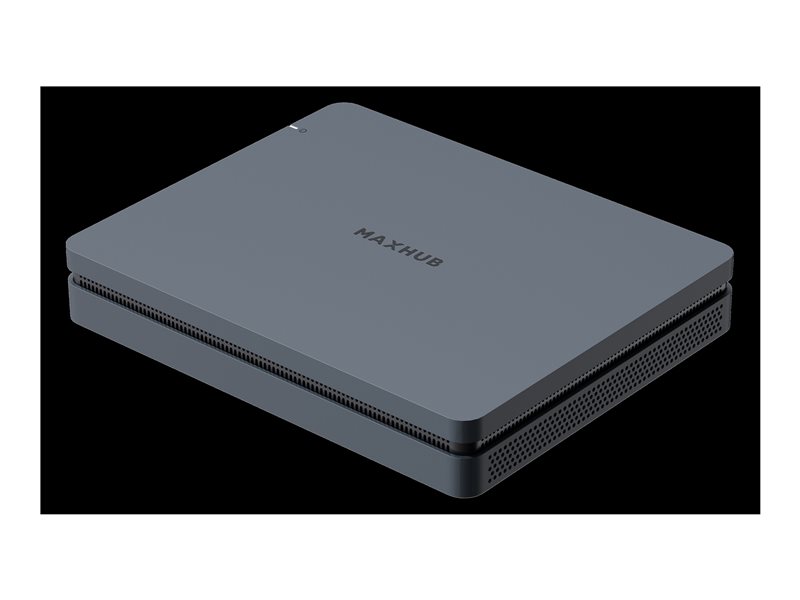

| Kit Content | Mini-PC XC13T, touch control panel TCP20T |
| Display | 10.1" 1920 x 1200 |

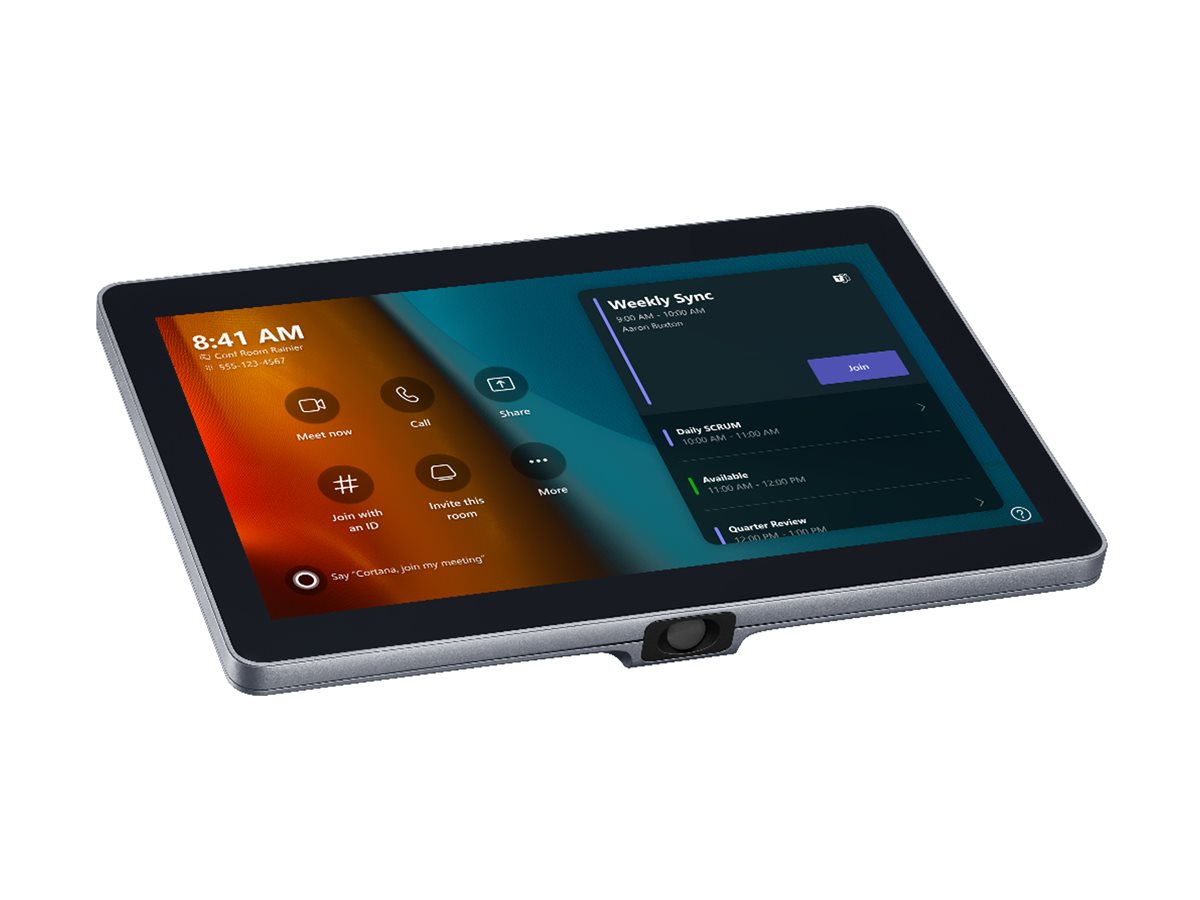

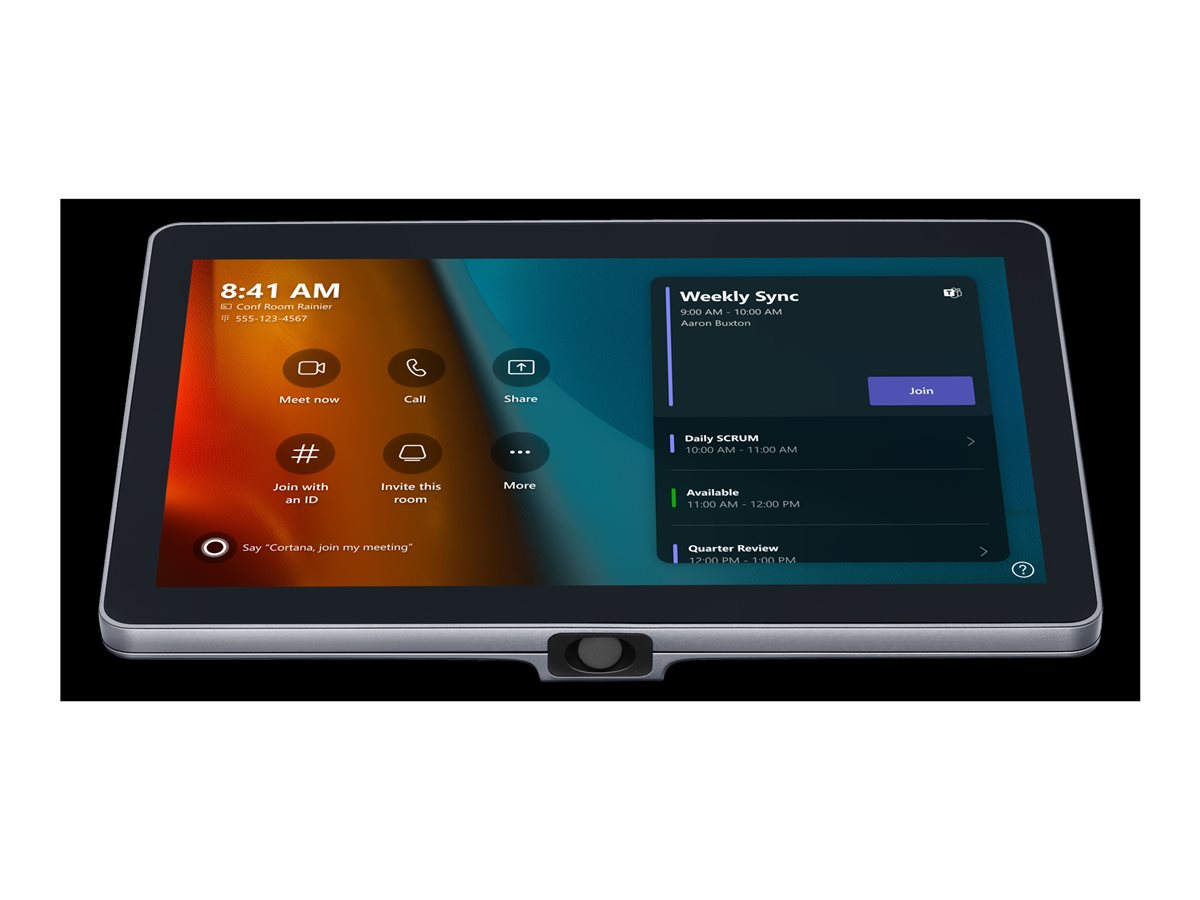

| Input Device | 10.1" touchscreen (wired) |
| PC Configuration | 12th Gen Core i3, 8GB RAM, 128GB SSD |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Software Certification | Certified for Microsoft Teams Rooms |
| System Requirements | Windows 11 IoT Enterprise SAC |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Mini-PC XC13T, touch control panel TCP20T |
| Dimensions & Weight Details | Mini-PC - Width 9.1 in Depth 7.3 in Height 1.6 in Weight 3 lbs ¦ Touch screen - Width 9.6 in Depth 3 in Height 6.5 in Weight 31 oz |
| Built-in Devices | PIR sensor |
| Expansion / Connectivity | |
| Interfaces | 4 x USB-A - SuperSpeed USB 3.0 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C - console - 24 pin USB-C ¦ 1 x audio / video - HDMI output ¦ 1 x audio - output ¦ 1 x audio / video - HDMI input ¦ 1 x USB-A - USB 2.0 ¦ 1 x USB-C - USB 3.1 - 24 pin USB-C ¦ 1 x headphones - output - 3.5mm audio jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-C cable - 6 ft ¦ 2 x HDMI cable - 6 ft |
| Included Accessories | Wall bracket, PC bracket, cable cover, 2 cable cover screws, 4 machine screws, 4 expansion screws, 4 self-tapping screws |
| Software Certification | Certified for Microsoft Teams Rooms |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 90 Watt |
| Software / System Requirements | |
| OS Required | Windows 11 IoT Enterprise SAC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH |
| Input Device | |
| Type | 10.1" touchscreen |
| Connectivity Technology | Wired |
| Features | Capacitance Touch Sensor, LED backlight, 1920 x 1200 resolution, security slot (Kensington security lock compatible) |
| Display | |
| Diagonal Size | 10.1" |
| Native Resolution | 1920 x 1200 |
| Image Brightness | 300 cd/m² |
| Monitor Features | LED-backlit, anti-glare, 10-point multi-touch, anti-fingerprint, capacitive touch screen, Auto Wake |
| Video Output | |
| PC Configuration | 12th Gen Core i3, 8GB RAM, 128GB SSD |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 35 in |
| Shipping Depth | 10.6 in |
| Shipping Height | 10.4 in |
| Shipping Weight | 14.85 lbs |
