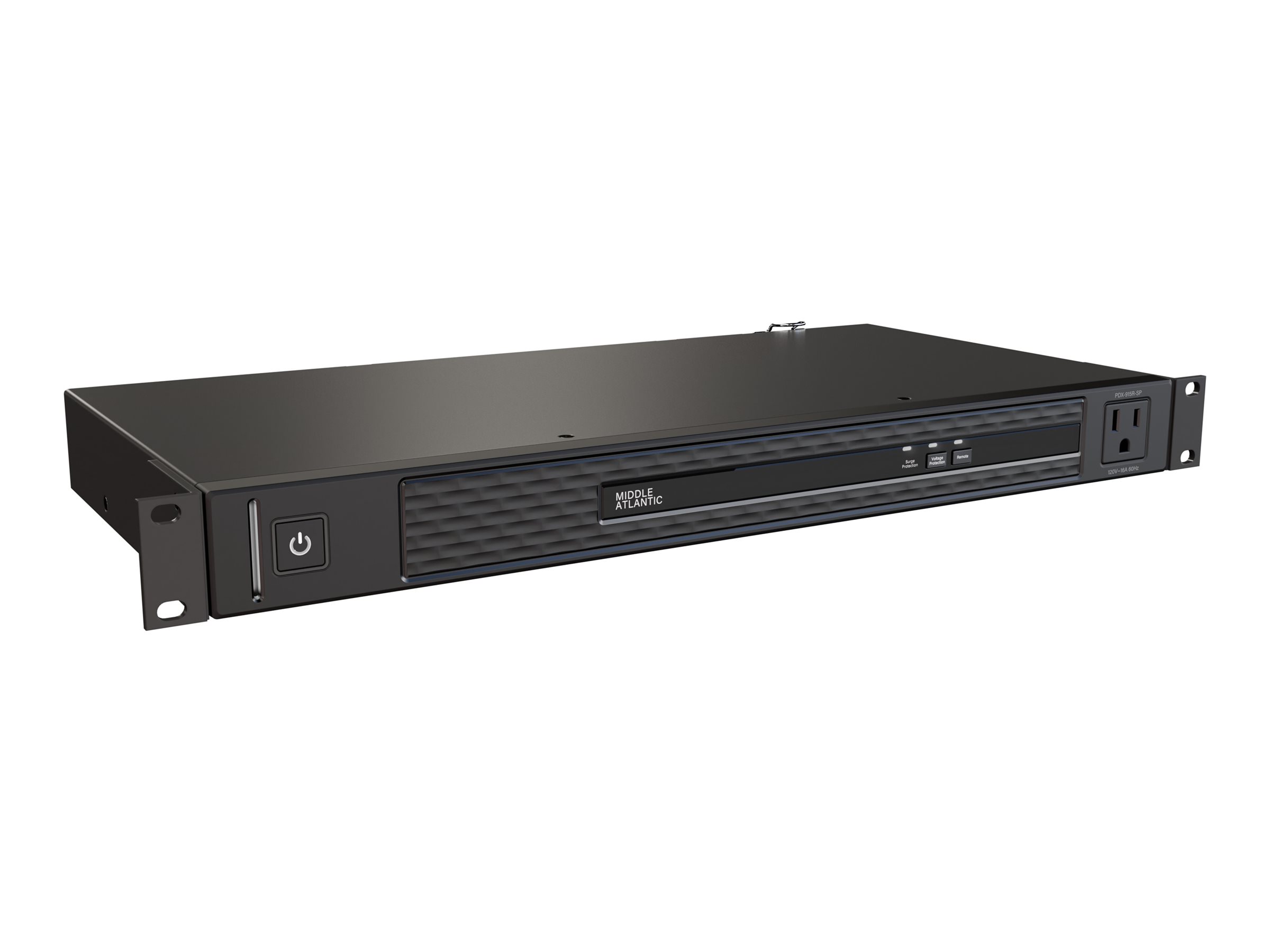

Middle Atlantic - Middle Atlantic NEXSYS
Power distribution unit (rack-mountable) - 15A, with Series Surge Protection - AC 120 V - input: NEMA 5-15P - output connectors: 9 (power NEMA 5-15R) - 1U - 19" - 9 ft cord
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Middle Atlantic NEXSYS - power distribution unit - 15A, with Series Surge Protection |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 9 ft |
| Rack Size | 19" - 1U |
| Weight | 8.6 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 9 x power NEMA 5-15R |
| Dimensions (WxDxH) | 19 in x 8.7 in x 1.7 in |
| Manufacturer Warranty | 12-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Cord Length | 9 ft |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 12 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 9 ft |
| Features | Horizontal orientation, Series Protection Surge technology, SignalSAFE, voltage protection |
| Compliant Standards | UL 62368, UL 1283, UL 1449, FCC Class B certified, ICES-003 issue 7 |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 80 - 140 V |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 9 x power NEMA 5-15R |
| Output Voltage | AC 120 V |
| Max Electric Current | 15 A |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 8.7 in |
| Height | 1.7 in |
| Weight | 8.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 11.46 lbs |
