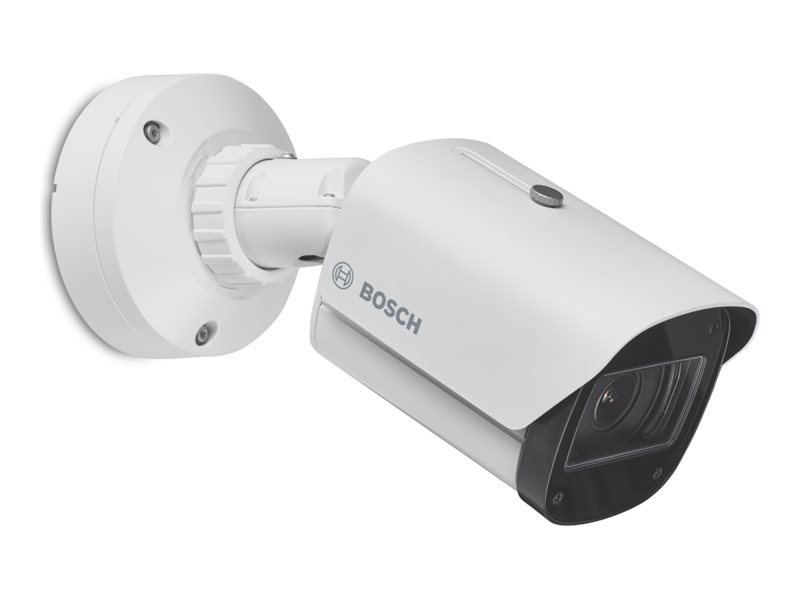

Bosch - Bosch DINION 7100i IR NBE-7702-ALX
Network surveillance camera - bullet - indoor, outdoor - dustproof / waterproof / vandal-proof - color (Day&Night) - 2.1 MP - 1920 x 1080 - auto iris - motorized - audio - Ethernet 10Base-T/100Base-T - MJPEG, H.264, H.265 - DC 12 - 26 V / AC 24 V / PoE Class 3
Bosch
NBE-7702-ALX
N/A
0800549984591
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Bosch DINION 7100i IR NBE-7702-ALX - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - indoor, outdoor - dustproof / waterproof / vandal-proof |
| Audio | Yes: two-way audio capability |
| Camera Mount Type | Surface mount |
| Dimensions (WxDxH) | 5.8 in x 5.8 in x 4.5 in |
| Weight | 6.5 lbs |
| Color | RAL 9003, signal white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.1 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p, 720p, 432p |
| Optical Sensor Type | CMOS - 1/1.8" - 2.1 MP |
| Minimum Illumination | 0.0061 lux - color - 30 IRE ¦ 0.001 lux - B&W - 30 IRE ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.7 mm - 10 mm |
| Focus Adjustment | Motorized |
| Lens Iris | F/1.35-1.97 - auto iris (P-Iris) |
| Interfaces | Ethernet 10Base-T/100Base-T |
| Voltage | DC 12 - 26 V / AC 24 V / PoE Class 3 |
| Features | Starlight X Technology, IR Corrected lens, Intelligent IR Technology, Bosch Intelligent Streaming, image mirror, 90° image rotation, 180° image rotation, 270° image rotation, upright mode, automatic electronic shutter, electronic image stabilization, High Dynamic Range X (HDRx), Backlight Compensation (BLC), Image Contrast Enhancement (ICE), sharpness enhancement, brightness control, auto white balance, privacy masking (up to 8 areas), display stamping, Intelligent Video Analytics Pro (IVA Pro), 2D tracking, 3D tracking, ship tracking, museum mode, Calibration Function, tamper-detection, full duplex audio, half duplex audio, digest authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, signed firmware, secure boot |
| Environmental Parameters (operating) | -58 °F - 140 °F; 5 - 93% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | AAC-LC |
| Form Factor | Bullet |
| Camera Mount Type | Surface mount |
| Connectivity Technology | Wired |
| Width | 5.8 in |
| Depth | 5.8 in |
| Height | 4.5 in |
| Weight | 6.5 lbs |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Audio line in ¦ Audio line out ¦ USB-C (for use with Wi-Fi dongle for setup and commissioning) |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | 4096-bit RSA, 256-bit AES-CBC, TLS 1.2, TLS 1.0, TLS 1.1, 256-bit AES, 128-bit AES, TLS 1.3, AES-XTS, MD5, SHA-1, SHA-256 |
| Miscellaneous | |
| Included Accessories | TR20 Allen key, screwdriver, grommets, 3 installer UX labels |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IK10, IP66, IP67, IP6K9K, NEMA Type 4X, NDAA, EN 55032 Class B, EN 50121-4, IEC 61000-6-3, IEC 61000-6-4, FCC CFR 47 Part 15 Class B, ICES-003 issue 7, EN 55035, EN 50130-4, IEC 61000-6-1, IEC 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN50130-5 Class IV, EN 60068-2-2, EN 60068-2-5, EN 60068-2-6, EN 60068-2-18, EN 60068-2-27, EN 60068-2-30, EN 60068-2-42, EN 60068-2-52, EN 60068-2-75, EN 60068-2-78, IEC/EN 63000, CP65, ISO 14993, IEC 62368-1, EN 62368-1, UL 62368-1, CSA C22.2 No. 62368-1, IEC 60950-22, EN 60950-22, UL 60950-22, CSA C22.2 No. 60950-22, IEC 62368-3, IEC 62471, EN 62262 IK10, EN 60529, cULus, RCM, WEEE, VCCI, CMIM, UKCA, IEC 62443, UL CAP |
| Color | RAL 9003, signal white |
| Power | |
| Power Requirements | DC 12 - 26 V / AC 24 V / PoE Class 3 |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 5 - 93% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - indoor, outdoor - dustproof / waterproof / vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p, 720p, 432p |
| Exposure Range | 1/1.5625 sec - 1/15000 sec |
| Minimum Illumination | 0.0061 lux - color - 30 IRE ¦ 0.001 lux - B&W - 30 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 262 ft |
| Digital Video Capture Resolution | 1920 x 1080, 1536 x 864, 1280 x 720, 768 x 432, 720 x 480, 640 x 480 |
| Frame Rate (max) | 60 frames per second |
| Features | Starlight X Technology, IR Corrected lens, Intelligent IR Technology, Bosch Intelligent Streaming, image mirror, 90° image rotation, 180° image rotation, 270° image rotation, upright mode, automatic electronic shutter, electronic image stabilization, High Dynamic Range X (HDRx), Backlight Compensation (BLC), Image Contrast Enhancement (ICE), sharpness enhancement, brightness control, auto white balance, privacy masking (up to 8 areas), display stamping, Intelligent Video Analytics Pro (IVA Pro), 2D tracking, 3D tracking, ship tracking, museum mode, Calibration Function, tamper-detection, full duplex audio, half duplex audio, digest authentication, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, signed firmware, secure boot |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 2.1 x |
| Focal Length | 4.7 mm - 10 mm |
| Lens Iris | F/1.35-1.97 auto iris (P-Iris) |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 48 - 103 |
| Vertical Field of View (degree) | 27 - 53 |
| Image Sensor | |
| Type | 2.1 MP CMOS 1/1.8" |
| Effective Pixels | 1920 x 1080 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, RTCP, IGMPv2, IGMPv3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA, NTP, SNTP, SNMP 1, SNMP 3, DNS, DNSv6, DDNS, SMTP, UPnP, QOS, LLDP, SOAP |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 1 |
