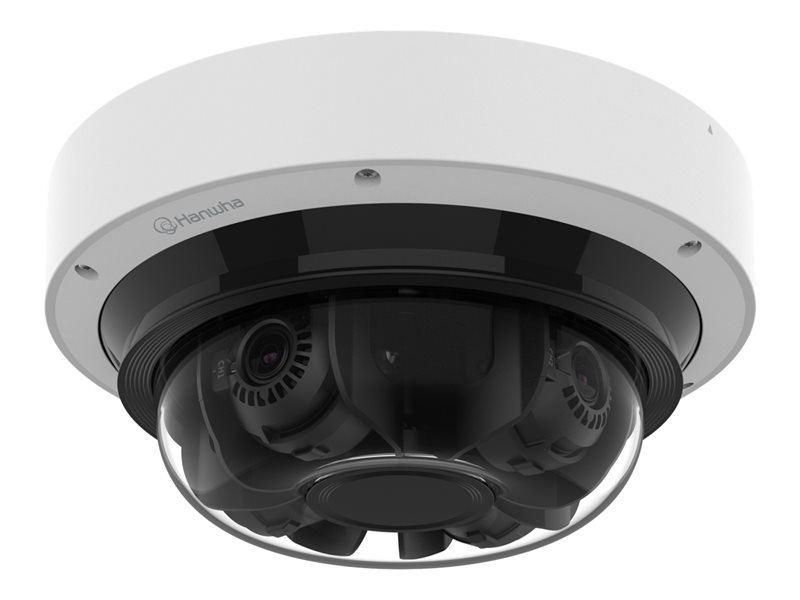

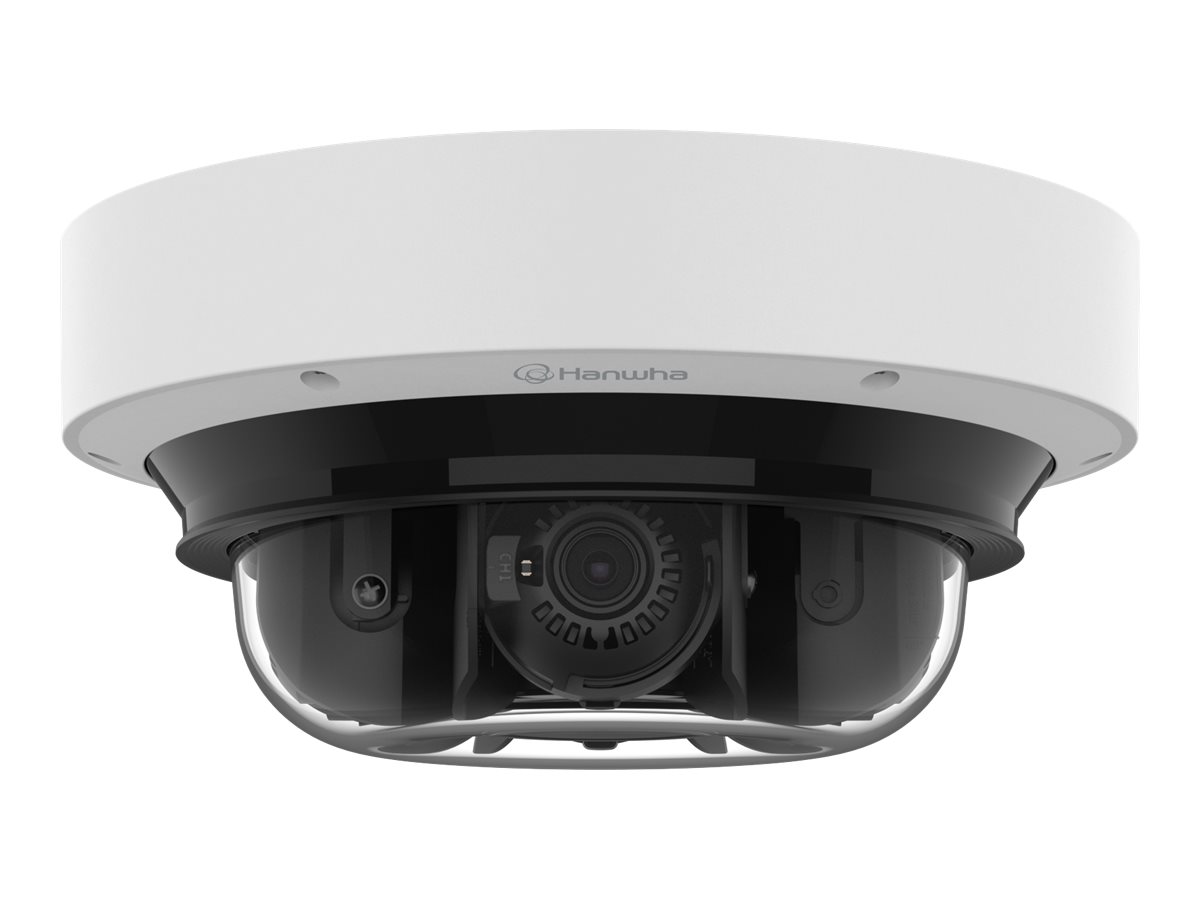

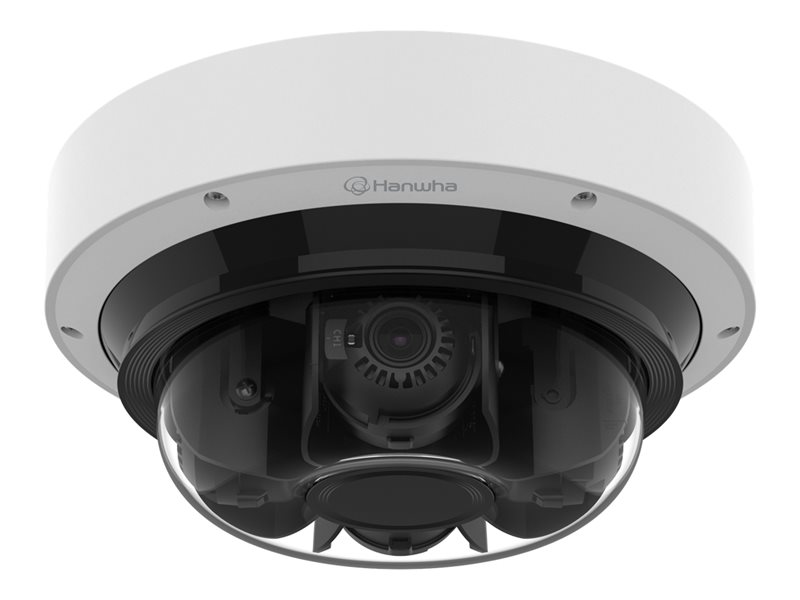

Hanwha Vision - Hanwha Vision PNM-C16083RVQ
Network surveillance camera - PTZ - dome - color (Day&Night) - 4 x 4 MP - 2592 x 1520 - fixed iris - motorized - audio - USB - GbE - MJPEG, H.264, H.265 - PoE Plus Class 4
Hanwha Vision
PNM-C16083RVQ
N/A
8801089223128
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision PNM-C16083RVQ - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt / zoom - dome |
| Audio | Yes |
| Dimensions (WxDxH) | 9.8 in x 9.8 in x 4.5 in |
| Weight | 6.02 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 1.73 x |
| Max Resolution | 2592 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 4 x 1/2.8" - 4 x 4 MP |
| Minimum Illumination | 0.075 lux - color - F1.5 - 30 IRE - shutter 1/30 sec ¦ 0.0075 lux - B&W - F1.5 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Motorized zoom |
| Focal Length | 3.3 mm - 5.7 mm |
| Focus Adjustment | Automatic (min distance 4.3 ft) |
| Lens Iris | F/1.5-1.9 - fixed iris |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 65 |
| Interfaces | USB, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | PoE Plus Class 4 |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, notification picture to E-mail, notification picture to FTP, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, digest authentication, WiseStream II support, anti-flicker, IP address filtering, Hallway View, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line detection, user access log, object classification, Trusted Platform Module (TPM), WiseStream III support, WiseNR II, Samsung Super Noise Reduction (SSNR) V, auto ICR, trigger recording, vehicle type classification |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 u-law |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 9.8 in |
| Depth | 9.8 in |
| Height | 4.5 in |
| Weight | 6.02 lbs |
| Expansion / Connectivity | |
| Ports | USB - Micro-USB Type B ¦ LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, NEMA Type 4X, IK10, IP66, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN 62471, IEEE 802.3at, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, IEEE 802.1x, NDAA, ICES-3(A)/NMB-3(A), EN 50130-4, UKCA, KS C 9832 Class A, KS C 9835, FCC 47 CFR Part 15 B Class A, IEC/EN 63000, VCCI-CISPR 32 Class A |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Plus Class 4 |
| Power Device | 25.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.075 lux - color - F1.5 - 30 IRE - shutter 1/30 sec ¦ 0.0075 lux - B&W - F1.5 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 49 ft |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448, 2592 x 1520 |
| Frame Rate (max) | 30 frames per second |
| RAM | 8 GB |
| Flash Memory | 1 GB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, notification picture to E-mail, notification picture to FTP, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, digest authentication, WiseStream II support, anti-flicker, IP address filtering, Hallway View, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line detection, user access log, object classification, Trusted Platform Module (TPM), WiseStream III support, WiseNR II, Samsung Super Noise Reduction (SSNR) V, auto ICR, trigger recording, vehicle type classification |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 1.73 x |
| Focal Length | 3.3 mm - 5.7 mm |
| Lens Iris | F/1.5-1.9 fixed iris |
| Focus Adjustment | Automatic |
| Min Focus Distance | 4.3 ft |
| Horizontal Field of View (degree) | 53 - 100 |
| Vertical Field of View (degree) | 30 - 54 |
| Diagonal Field of View (degree) | 61 - 125 |
| Image Sensor | |
| Type | 4 x 4 MP CMOS 4 x 1/2.8" |
| Interfaces | |
| Video | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SSL, QOS, SRTP, LLDP, MQTT |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 65 |
