Hewlett Packard Enterprise - HPE

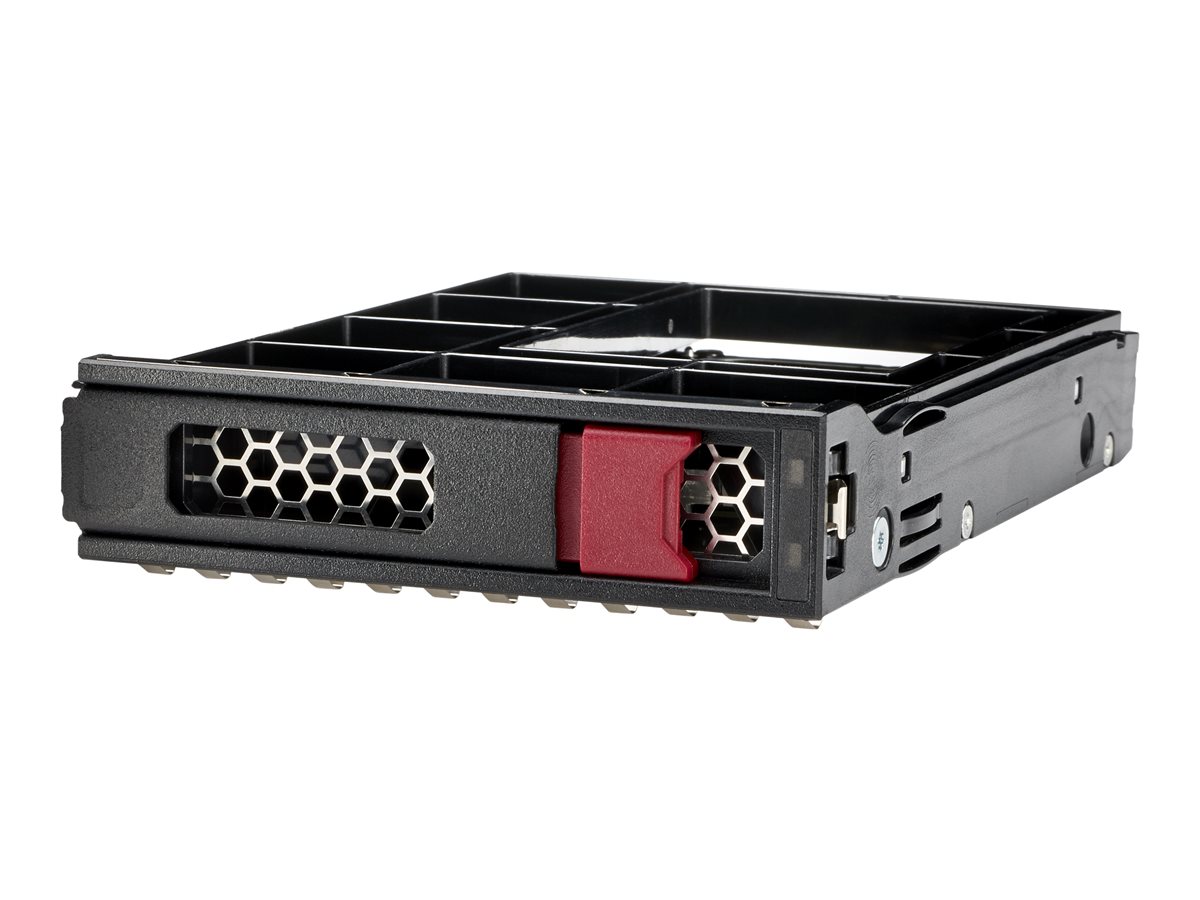

SSD - Read Intensive - 960 GB - hot-swap - 2.5" LFF - SATA 6Gb/s - Multi Vendor - with HPE Low Profile carrier
Hewlett Packard Enterprise
P47808-B21
N/A
0190017545127
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE - SSD - Read Intensive - 960 GB - SATA 6Gb/s |
| Type | Solid state drive - hot-swap |
| Capacity | 960 GB |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" LFF |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Drive Class | Read Intensive |
| Features | Digitally Signed Firmware |
| Dimensions (WxDxH) | 0.3 in |
| Manufacturer Warranty | 3-year warranty |
| Bundled with | HPE Low Profile carrier |
| Designed For | ProLiant DL20 Gen10, DL325 Gen10, ML110 Gen10, ML30 Gen10, ML350 Gen10; SimpliVity 325 Gen10 |
| General | |
| Device Type | Solid state drive - hot-swap |
| Capacity | 960 GB |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" LFF |
| Interface | SATA 6Gb/s |
| Features | Digitally Signed Firmware |
| Height | 0.3 in |
| Bundled with | HPE Low Profile carrier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Power Consumption | 1.35 Watt (idle) ¦ 3.02 Watt (random read) ¦ 3.02 Watt (random write) ¦ 3.05 Watt (sequential read) ¦ 3.37 Watt (sequential write) ¦ 3.02 Watt (random read/write) ¦ 3.37 Watt (maximum) |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.8 |
| SSD Endurance | 1400 TB |
| Drive Class | Read Intensive |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 515 MBps (read) / 480 MBps (write) |
| 4KB Random Read | 58500 IOPS |
| 4KB Random Write | 29000 IOPS |
| Compatibility Information | |
| Designed For | HPE ProLiant DL20 Gen10 (3.5"), DL20 Gen10 Entry (3.5"), DL20 Gen10 Performance (3.5"), DL20 Gen10 Plus (3.5"), DL20 Gen10 Plus Base (3.5"), DL20 Gen10 Plus Entry (3.5"), DL20 Gen10 Plus High Performance (3.5"), DL20 Gen10 Plus Performance (3.5"), DL20 Gen10 solution (3.5"), DL325 Gen10 Plus (3.5"), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (3.5"), DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage (3.5"), DL325 Gen10 Plus for Weka BAse Tracking (3.5"), DL325 Gen10 Plus for Weka Expansion Tracking (3.5"), DL325 Gen10 Plus V2 (3.5"), DL325 Gen10 Plus V2 Base (3.5"), DL325 Gen10 Plus V2 for Weka Base Tracking (3.5"), DL325 Gen10 Plus V2 Performance (3.5"), ML110 Gen10 (3.5"), ML110 Gen10 Entry (3.5"), ML110 Gen10 Performance (3.5"), ML110 Gen10 Solution (3.5"), ML30 Gen10 Plus (3.5"), ML30 Gen10 Plus Entry (3.5"), ML30 Gen10 Plus Performance (3.5"), ML350 Gen10 (3.5"), ML350 Gen10 Base (3.5"), ML350 Gen10 Entry (3.5"), ML350 Gen10 High Performance (3.5"), ML350 Gen10 Performance (3.5"), ML350 Gen10 SMB (3.5"), ML350 Gen10 Solution (3.5"), ML350 Gen10 Special Server (3.5"), ML350 Gen10 Sub-Entry (3.5") ¦ HPE SimpliVity 325 Gen10 Plus V2 Node (3.5") |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 2.5" LFF |
