Black Box - Black Box KVX Series KVM Extender over Fiber
4K, Dual-Head, DisplayPort, USB 2.0 Hub, Serial, SFP, Audio, Local Video - Extender Kit - KVM / audio / serial / USB extender - over fiber optic - USB - up to 18.6 miles
Product Description
Additional Details
- Special Delivery: None

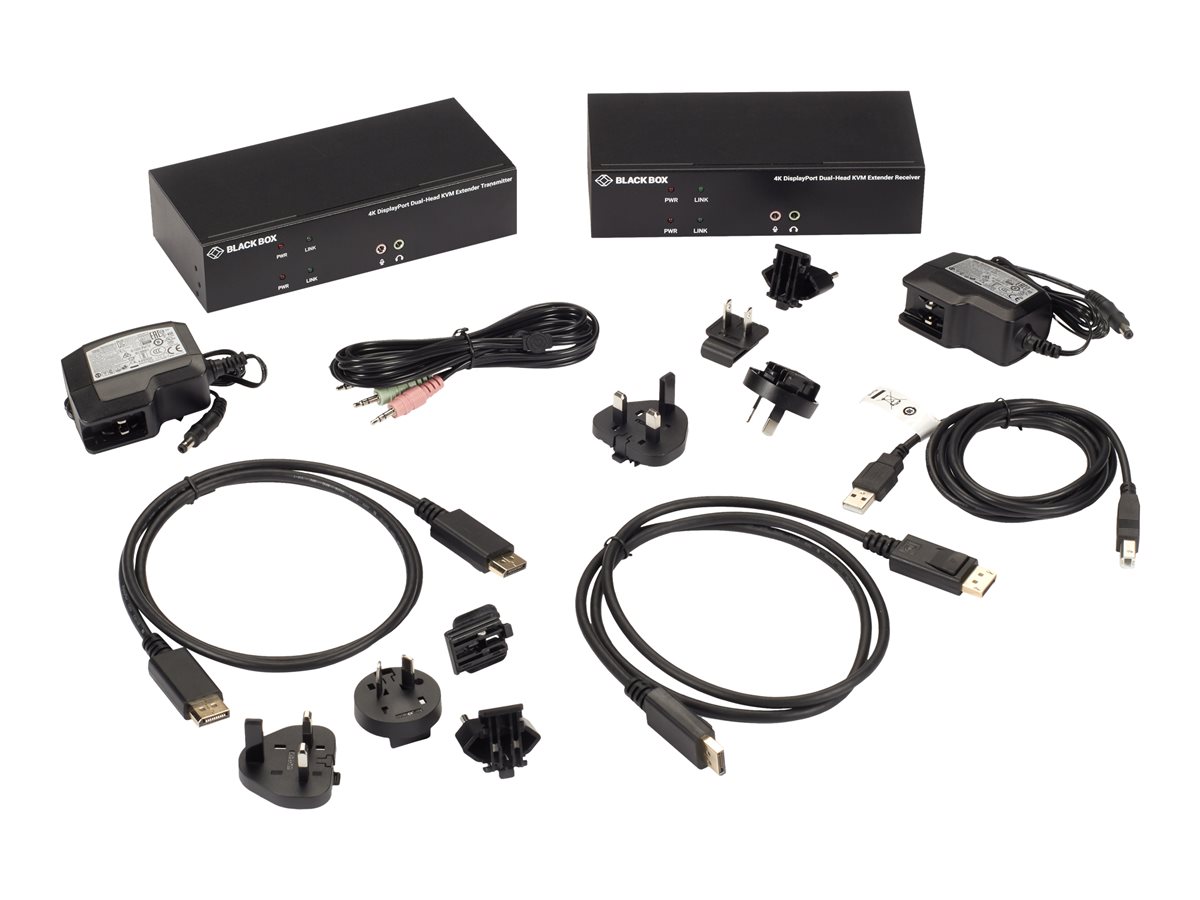

What's Included
| Main Specifications | |
|---|---|
| Product Description | Black Box KVX Series KVM Extender over Fiber - 4K, Dual-Head, DisplayPort, USB 2.0 Hub, Serial, SFP, Audio, Local Video - Extender Kit - KVM / audio / serial / USB extender |
| Device Type | KVM / audio / serial / USB extender - USB |
| Form Factor | External |
| Transmission Medium | Fiber optic |
| Max Transfer Distance | 18.6 miles |
| Dimensions (WxDxH) | 7.1 in x 3.3 in x 1.7 in |
| Weight | 13.61 oz |
| General | |
| Device Type | KVM / audio / serial / USB extender |
| Form Factor | External |
| Expansion / Connectivity | |

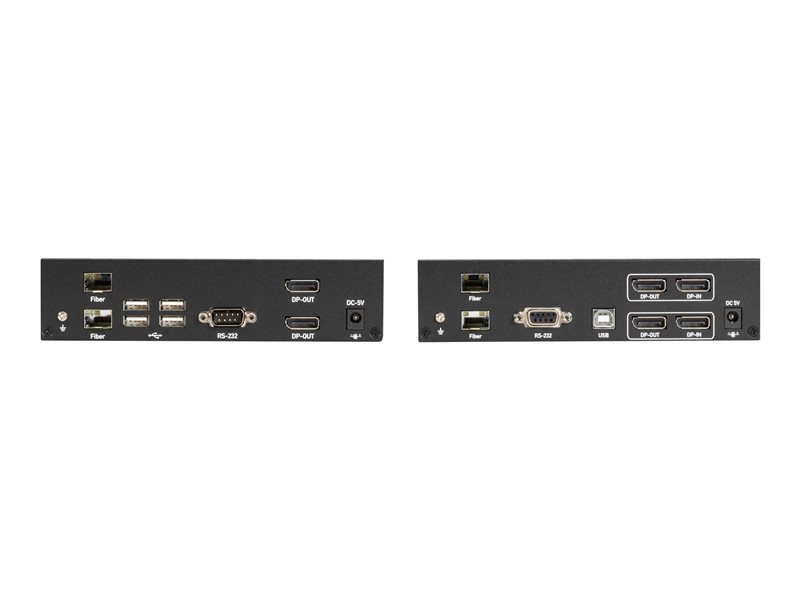

| Interfaces | 2 x DisplayPort (input) female ¦ 4 x DisplayPort (output) female ¦ 1 x RS-232 - DB-9 male ¦ 1 x RS-232 - DB-9 female ¦ 4 x USB 2.0 - Type A female ¦ 1 x USB 2.0 - Type B female ¦ 4 x network - SFP female ¦ 2 x headphones - mini jack female ¦ 2 x microphone - mini jack female |
| Miscellaneous | |
| Included Accessories | International power plugs |
| Cables Included | 2 x DisplayPort cable - 6 ft ¦ 1 x audio cable - 6 ft ¦ 1 x USB type A to USB type B cable - 6 ft |
| Rack Mounting Kit | Optional |
| MTBF | 137,540 (TX)/165,620 (RX) hours |
| Compliant Standards | DDC-2B, DDC, DDC-2 |
| Networking | |
| Connectivity Technology | Wired |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 18.6 miles |
| Status Indicators | Power, link/activity |
| Features | 4K resolution support, metal housing, CatX Technology, USB HID Transport |
| Compliant Standards | USB 2.0 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.1 in |
| Depth | 3.3 in |
| Height | 1.7 in |
| Weight | 13.61 oz |
| Dimensions (WxDxH) / Weight Details | Receiver: 7.1 in x 3.3 in x 1.7 in / 13.6 oz ¦ Transmitter: 7.1 in x 3.3 in x 1.7 in / 13.6 oz |
