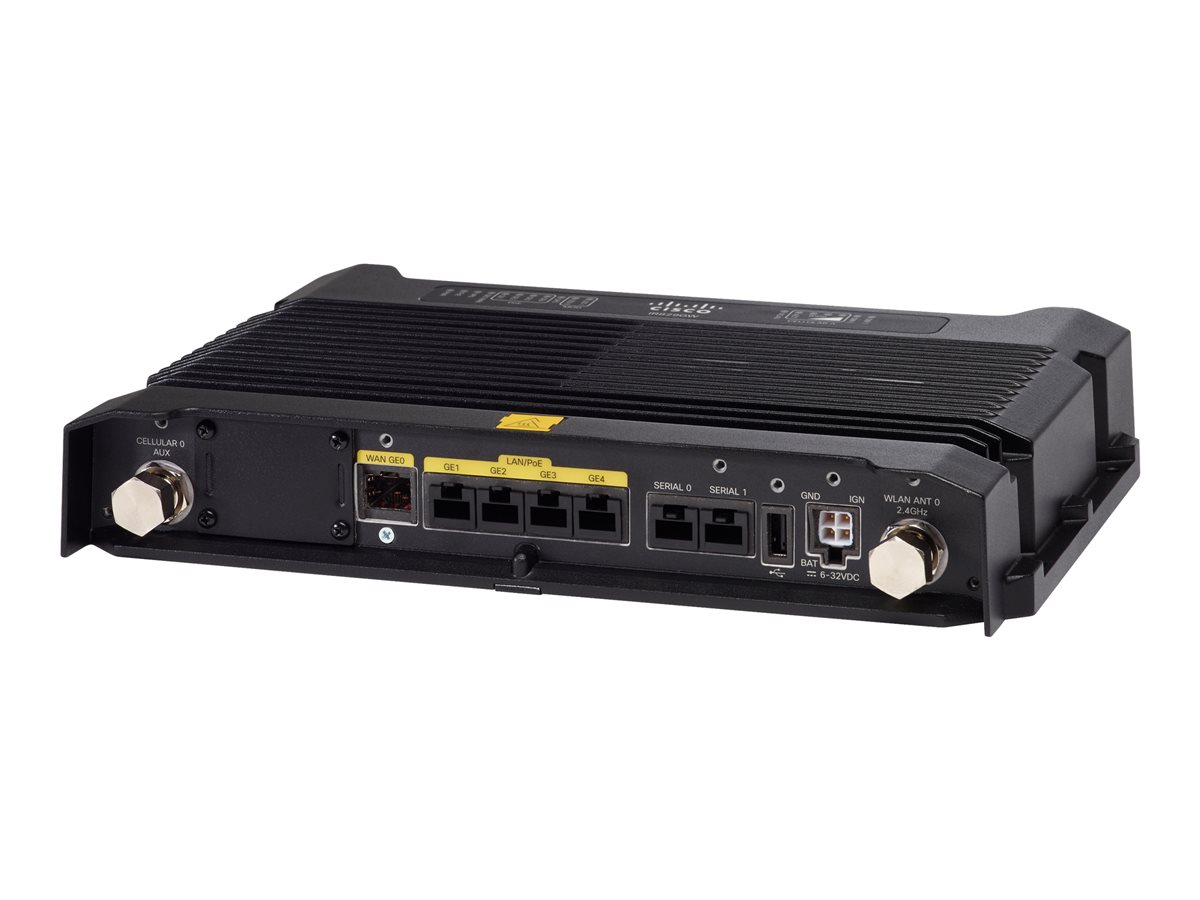

Cisco - Cisco Industrial Router 829

Wireless router - WWAN - 4-port switch - GigE - Wi-Fi - Dual Band - remanufactured

Cisco
IR829GWLTELAZK9-RF
N/A
N/A
N/A
New

Price: $1,443.84

MSRP: $2,338.64
Discount off MSRP: 38.26%
In Stock

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description Cisco Industrial Router 829 - wireless router - WWAN - Wi-Fi - desktop
Device Type Wireless router - wireless cellular modem - 4-port switch (integrated)
Enclosure Type Desktop
Cellular Protocol UMTS, HSPA+, LTE
WAN Ports Qty 1
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz / 5 GHz
Capacity VLANs supported: 16 ¦ IPSec tunnels: 20
Network / Transport Protocol TCP/IP, UDP/IP, L2TP, RSVP, ICMP/IP, IPSec, SLIP, FTP, DHCP, DNS, L2TPv3, DDNS, RTP
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Features Firewall protection, NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, DFS support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), Virtual Route Forwarding-Lite (VRF-Lite), Bidirectional Forwarding Detection (BFD), IPv4 support, Maximum Ratio Combining (MRC), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, cyclic shift diversity (CSD), Storm Control
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
Power DC 9 - 32 V
Dimensions (WxDxH) 11 in x 7.7 in x 1.7 in
Weight 4.41 lbs
Localization Brazil
Pricing Type Remanufactured
Manufacturer Warranty 5-year warranty
General
Device Type Wireless router - 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz / 5 GHz
Capacity VLANs supported: 16 ¦ IPSec tunnels: 20
Network / Transport Protocol TCP/IP, UDP/IP, L2TP, RSVP, ICMP/IP, IPSec, SLIP, FTP, DHCP, DNS, L2TPv3, DDNS, RTP
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm DES, Triple DES, SHA, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Firewall protection, NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, DFS support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), Virtual Route Forwarding-Lite (VRF-Lite), Bidirectional Forwarding Detection (BFD), IPv4 support, Maximum Ratio Combining (MRC), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, cyclic shift diversity (CSD), Storm Control
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-11, FCC CFR47 Part 15, EN 60950-1, MIL-STD 810G, EN 61131-2, IP40, EN 62311, EN 300 328, EN 50385, EN 60945, EN 301 489-1, EN 300 386, EN 50155, EN 301 489-17
Processor Qualcomm
RAM 2 GB (installed) / 2 GB (max)
Flash Memory 4 GB (installed) / 8 GB (max)
Status Indicators System, active, WLAN, WAN, LAN, 3G, 4G, GPS
Expansion / Connectivity
Interfaces WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ Serial: 1 x RS-232 ¦ Serial: 1 x RS-232/485 ¦ USB: 1 x mini-USB Type A
Expansion Slots 2 (total) / 2 (free) x SIM
Manufacturer Warranty
Service & Support Limited warranty - advance hardware replacement - 5 years - response time: 10 days
Miscellaneous
MTBF 5,477,730 hours
Pricing Type Remanufactured
Localization Brazil
Power
Voltage Required DC 9 - 32 V
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 140 °F
Communications
Type Wireless cellular modem
Cellular Protocol UMTS, HSPA+, LTE
Max Transfer Rate 100 Mbps
Dimensions & Weight
Width 11 in
Depth 7.7 in
Height 1.7 in
Weight 4.41 lbs
