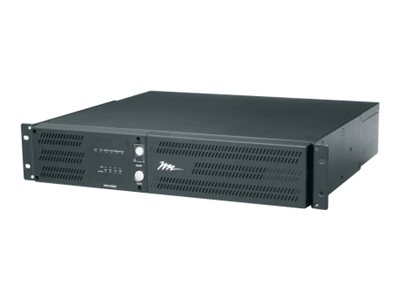

Middle Atlantic - Middle Atlantic 2RU Select Series UPS
UPS Backup Power - 2200VA - UPS (rack-mountable) - AC 120 V - 1320 Watt - 2200 VA - 9 Ah - USB - output connectors: 8 - 2U - 19" - black
Middle Atlantic
UPS-S2200R
N/A
0656747237164
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Middle Atlantic 2RU Select Series UPS - UPS Backup Power - 2200VA - UPS - 1320 Watt - 2200 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 19" - 2U |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 10% |
| Power Capacity | 1320 Watt / 2200 VA |
| Input Connectors | 1 x power NEMA 5-20 |
| Output connectors | 8 x power NEMA 5-20 |
| Battery | - 9 Ah |
| Batteries Qty | 4 |
| Run Time (Up To) | 4 min at full load |
| Networking | USB |
| Color | Black |
| Dimensions (WxDxH) | 19 in x 16.5 in x 3.5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), overload protection |
| Compliant Standards | RoHS, GREENGUARD |
| Networking | |
| Remote Management Interface | USB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Quantity | 4 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 4 min at full load ¦ 13 min at half load |
| Transfer Time | 8 ms |
| Features | Maintenance free, sealed |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 90 - 140 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x power NEMA 5-20 |
| Power Output Connectors Details | 8 x power NEMA 5-20 |
| Output Voltage | AC 120 V ± 10% - 60 Hz |
| Power Capacity | 1320 Watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1840 Joules |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 16.5 in |
| Height | 3.5 in |
